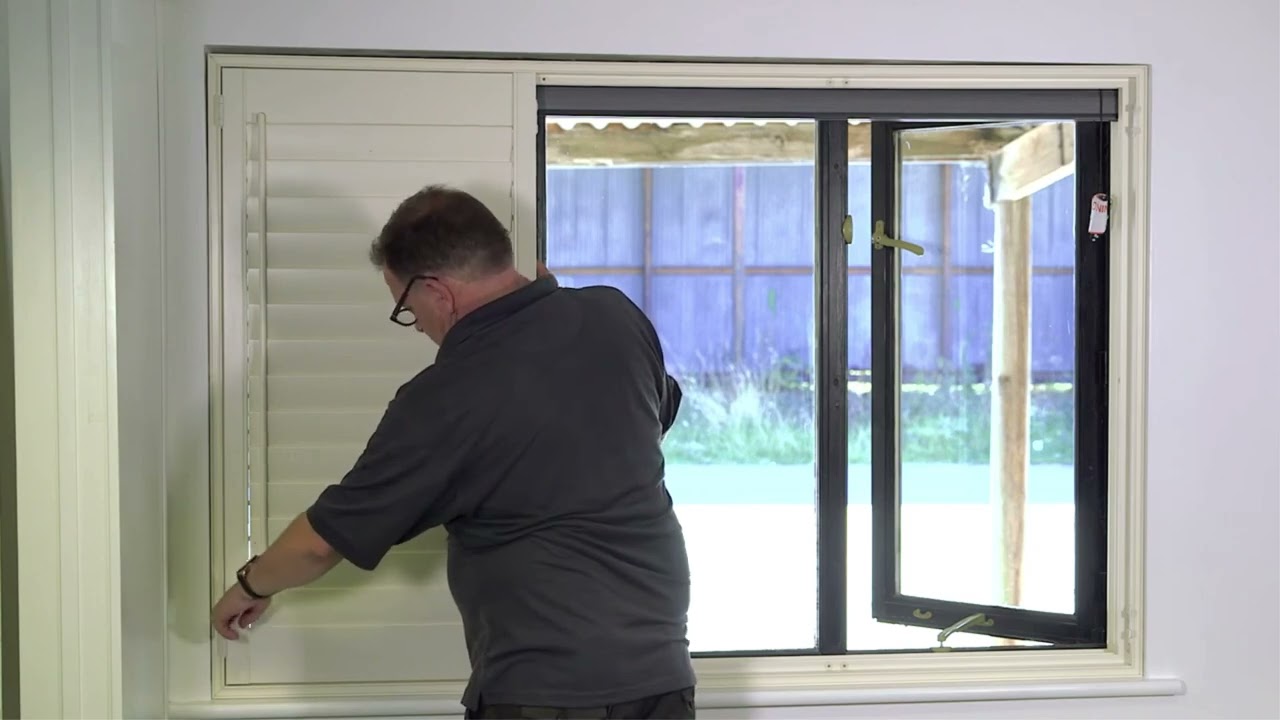

A fitter hanging a white shutter panel in a window frame

Video installation guide

DIY Shutter Installation

Follow the instructions in our video and learn how to install shutters yourself. Our step-by-step guide covers frames, battens and T-posts, and our team is on hand if you need help.

Watch the film

How to install DIY shutters.

Before you start

Preparing to unpack your shutters.

Your order card, attached to your delivery, gives you a full breakdown of the items needed to install the shutters. The accuracy of the survey or measurements preceding confirmation is instrumental to a quick and straightforward installation: if a shutter has been measured incorrectly, additional work may be required at the point of installation.

For each shutter there will usually be one box containing the frame profiles or battens and another containing the panels (larger shutter sets will have multiple boxes). Each box is labelled on its end with the shutter set dimensions and the location from the order card. You will also find a ‘hardware’ box with the essential items for fixing your shutters together.

Before you start, make sure that when fitted, the louvres are not prevented from opening by obstructions.

Recommended tools

  • A selection of flat head and Philips screw drivers
  • A spirit level tape measure
  • Gauge screws
  • Electronic chop saw or fine bladed hack saw and mitre block
  • Filler and builders chalk
  • Nylon headed hammer
  • A selection of wood and masonry drill bits
  • Counter sinking drill bit
  • Pliers

Step by step

Fitting your shutters.

Choose the fitting method shown on your order card. Each method works inside or outside the window recess.

Fitting with frames

  1. Lay out the shutter frame which will usually consist of three or four sides (each profile will be labelled ‘left’, ‘right’, ‘top’, etc) and remove any insert strips.
  2. Assemble the shutter frame by inserting a nylon ‘Hoffman key’ (found in the hardware box) into each corner joint. Remember that if the shutter set is café style, the horizontal frame profile will be at the bottom rather than the top. If using a deco frame, each corner is also secured by a diagonal screw for added strength.
  3. If fitting a frame without factory drilling fixing holes, mark the hole positions on the profiles and drill. If face fixing using a profile with insert strips, there is no need to countersink; make sure the screw heads are not proud of the frame profile surface, which will hinder closure and may damage the sides of the end panels.
  4. Lift the assembled frame into position and mark the fixing hole positions onto the fixing surface. Ensure the frame is level, both horizontally and vertically, by placing a spirit level against the profiles when positioning.
  5. Remove the frame, drill the fixing holes and plug if fixing to masonry.
  6. Reposition the frame and secure with screws. When fitting inside the recess with a long sloping sill, packers can be inserted beneath the frame at the lowest end to level the frame whilst fitting. These packers can then be removed when the frame is secured, or left in place if they are hidden after finishing.
  7. If fitting a two or three sided frame (except café style), fit the light block batten between the inside, bottom edges of the side of the frames by screwing it to the sill. If you prefer not to have anything fitted to the sill, this profile can be left off.
  8. Fit the last panel (the far left hand panel) to the left hand frame side by inserting the hinge pins. If you find a pin difficult to locate, loosen the hinge screws, insert the pin, then retighten the screws.
  9. Hinge the second panel to the first and so on until all the panels are fitted. On a tier on tier set, the upper panels have the magnets fitted at the top of the panels and the lower panels have them at the bottom; the lower panels are also fitted with panel feet.
  10. Fold back the panels and close them across the window again to ensure they are correctly aligned. If the leading panels do not meet correctly, adjust the height of the end panels by moving the frame hinges up and down: slacken the screws in the elongated holes, raise or lower the panels and retighten the screws.
  11. Fit the securing screws to the centre hole on each frame hinge to lock them into position. If using the frame with insert strips, refit the strips to hide the screw heads.
  12. When fitting inside a recess, the gaps between the frame and the reveal sides can be filled with a suitable filler such as builders’ chalk, which can then be painted. For larger gaps, cover strips can be cut to shape and fitted to the frame face to disguise any unevenness.

And finally

Shutter help is a phone call away.

  • Arrives in perfect conditionFrom manufacture through to delivery, The Shutter Shop takes precautions to ensure that all orders arrive in perfect condition.
  • Damaged or incorrect?If goods arrive damaged, are accidentally damaged during installation or are incorrect in some way, report it to The Shutter Shop.
  • Installation helplineCall 0207 751 0937 or email sales@shuttershop.co.uk for assistance at any point during your installation.

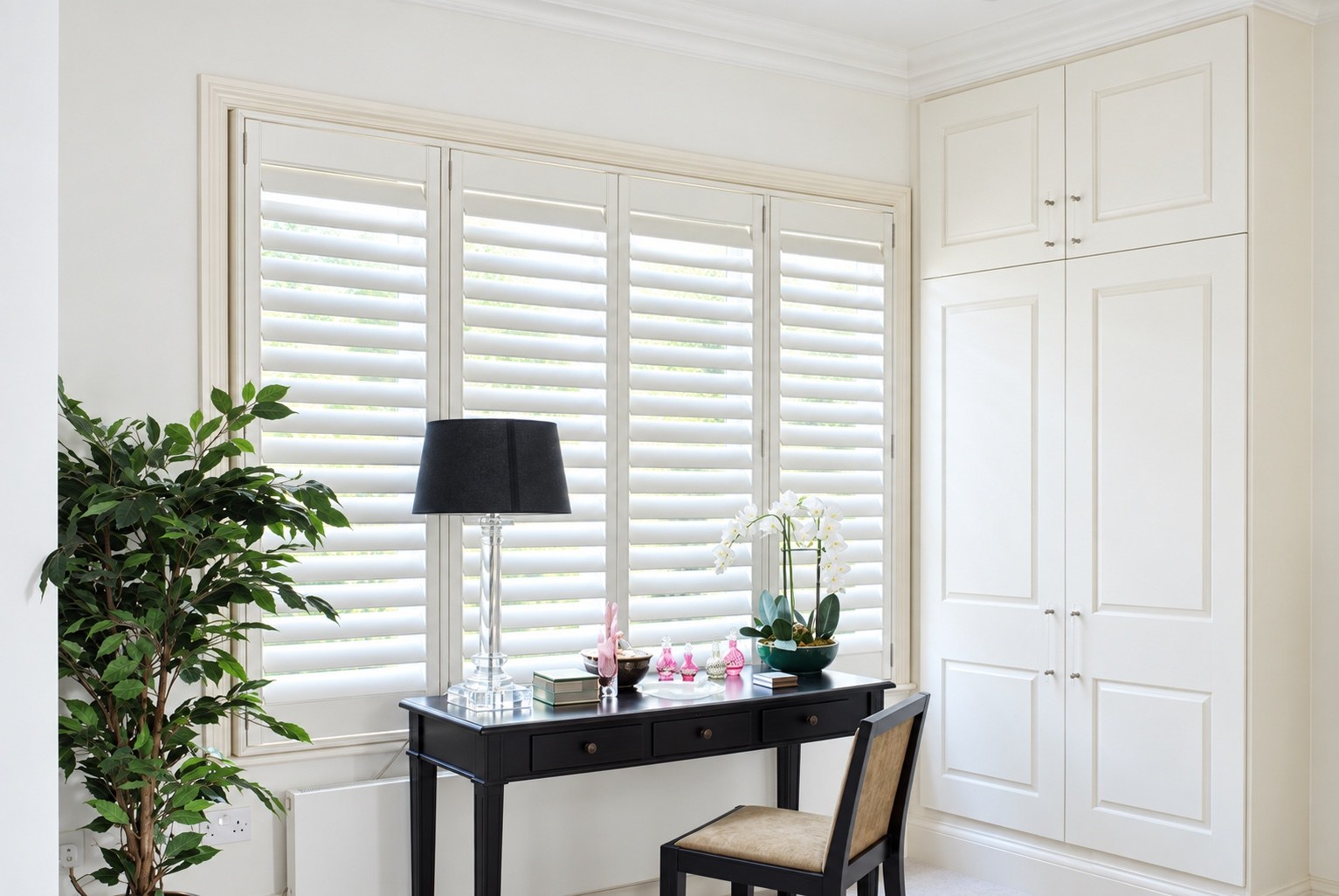

Full height white shutters fitted in a bedroom

Your questions answered

DIY shutter FAQs

Is it difficult to install shutters myself?

It is very easy to install your new shutters if they have been measured accurately. Each delivery comes with an order card that gives you a full breakdown of the items needed, every box is labelled with the shutter set dimensions and location, and the hardware box contains the essential fixings. Follow the video and our step-by-step installation guide, and call our team if you need help.
